Medium strength brass padlock with chrome finish
Grade 3

Key System: CLASSIC (C)

For new Keyed Alike, a minimum purchase of 2 locks is required. The first 3 keys will be given free, regardless of the number of locks purchased.

For new Keyed Differ, 2 keys will be given free per lock purchased.

For existing Keyed Differ & Keyed Alike, please visit our showroom with sample key(s).

An all purpose padlock of durable construction for storage doors, motorcycles, gates, trailers, power station switches and similar applications.

PL330 padlocks feature an 8 mm, hardened boron steel shackle. They are also available with non sparking brass or stainless steel shackle. ABLOY PL330 Brass Padlock with 25mm or 50mm or 100mm Case-Hardened Boron Steel (CHBS) shackle of diameter 8mm (Chrome Finish).

ABLOY PL330 series are tested to security grade level 3. PL330/100 is not tested for a security grading.

ABLOY Grade 3 padlocks meet the requirements of the following standards:
EN12320 Grade 3, SSFN014 Grade 2

Click on the image to enlarge view.

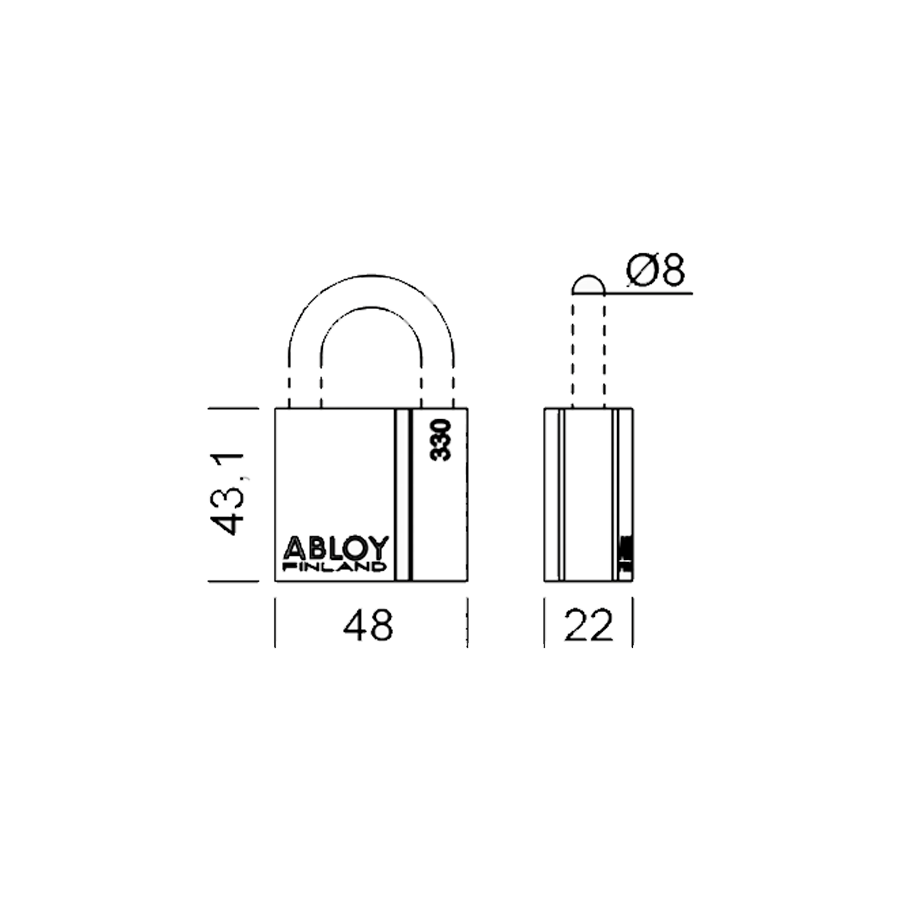

ABLOY Padlock PL330 Drawing

BODY
Material: Brass
Finish: Chrome

SHACKLE
Material: Case-Hardened Boron Steel
Finish: Chrome
Diameter: 8mm
Vertical Clearance: 50mm
Horizontal Clearance: 25mm

Number of Discs: 11

Key removable only in locked position.
